Elevator Emergency Telephone: Rugged Analog & SIP Intercom-JWAT413

Short Description:

JWAT413 Ruggedized Intercom: A Modular Solution for Critical Environments

Engineered with a SUS 304 stainless steel chassis and a waterproof metal emergency button, the JWAT413 is designed for maximum durability and reliability in demanding locations.

This versatile intercom supports multiple network interfaces (Analog, VoIP, GSM) and can be enhanced with an optional camera for video verification. It is engineered for seamless integration into a broad spectrum of infrastructures, from simple analogue setups to complex IP-based security and signaling systems, including program-controlled switches and IP PBXs.

All products are developed by our specialized R&D team and carry FCC and CE certifications, validating their high quality and compliance with international standards for industrial IP network solutions.


Product Detail

Product Tags

Product Introduction

JWAT413 Rugged Emergency Intercom: Unmatched Durability & Flexibility

  • Clear Hands-Free Communication: Works seamlessly over Analog or VoIP networks. Ideal for sterile and demanding environments.
  • Vandal-Proof Construction: Housed in cold-rolled steel or SUS304 stainless steel to withstand harsh use.
  • Reliable by Design: Features a waterproof top, programmable auto-dial (single/dual button), and an optional SOS indicator light.
  • Built Your Way: Choose from colors, keypads, and extra buttons.
  • Guaranteed Connectivity: Engineered to maintain primary communication functions at all times, even under duress.

Features

  • Model: Standard Analog; SIP Version Available
  • Housing: 304 Stainless Steel, Vandal-Resistant
  • Button: Vandal-Resistant Stainless Button (LED Indicator Optional)
  • Weatherproof Rating: IP54 to IP65
  • Operation: Hands-Free, One-Button Emergency Call
  • Mounting: Flush Mount
  • Audio: Sound Level ≥ 85 dB (with External Power Supply)
  • Connection: RJ11 Screw Terminal
  • Certifications: CE, FCC, RoHS, ISO9001
  • Manufacturing: In-House Spare Parts Production

Application

VAV

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V/DC5V 1A
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40～+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80～110KPa
Weight 1.88kg
Relative Humidity ≤95%
Installation Wall mounted

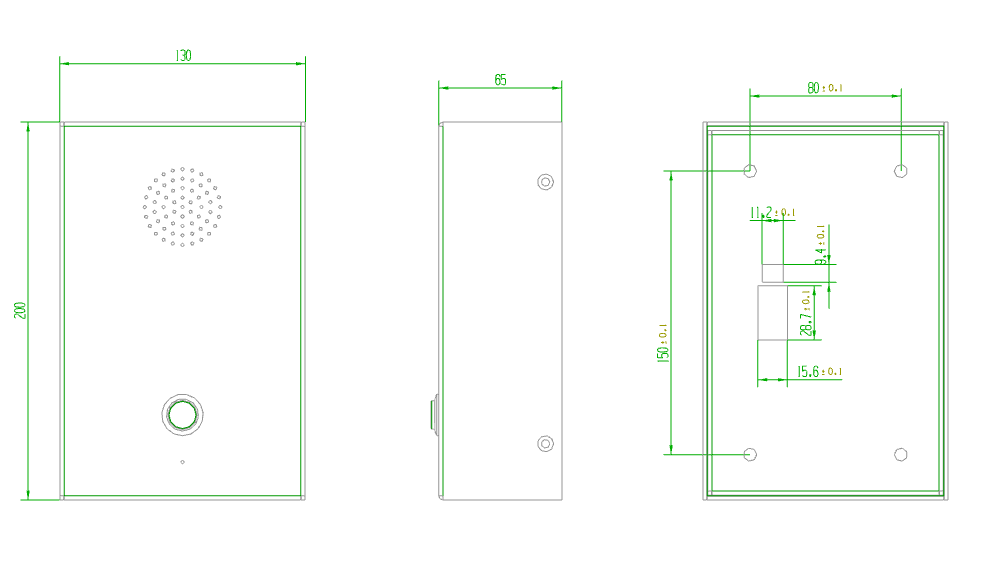

Dimension Drawing

C774BEAD-5DBB-4d88-9B93-FD2E8EF256ED

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.

Each machine is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
