Explosion-Proof Junction Box with Exd Certification-JWBX-30

Short Description:

This Explosion-Proof Junction Box is engineered to ensure the highest level of safety and reliability in hazardous environments where flammable gases, vapors, or dusts may be present. It features a robust Exd flameproof enclosure certified for standards such as Exd IIC T6 or ATEX, which contains any internal ignition and prevents it from triggering a surrounding atmosphere.

Send email to us

Product Detail

Product Tags

Product Introduction

Constructed from high-strength, corrosion-resistant materials like copper-free aluminum alloy or stainless steel, the junction box is built to withstand harsh conditions, including impacts, corrosion, and wide temperature fluctuations. Its design incorporates precision-machined flanges and sealed joints, ensuring the integrity of the enclosure. With a high IP66/IP67 protection rating, it also offers complete defense against dust and water ingress.

Features

Explosion-Proof Certification: Compliant with Exd IIC T6 / ATEX standards.
Superior Protection: High IP66/IP67 rating for dust and water tightness.
Rugged Construction: Made from copper-free aluminum alloy or 316 stainless steel.
Flameproof Principle: Contains internal explosions within the enclosure.
Wide Industry Use: Essential for Oil & Gas, Chemical, and Mining sectors.

Application

This critical safety component is indispensable across various industries, including:

Oil & Gas: On drilling rigs, refineries, and pipeline stations.
Chemical & Pharmaceutical: In processing plants and storage areas.
Mining: Throughout underground tunnels and coal handling facilities.
Grain Silos & Food Processing: Where combustible dust is a risk.

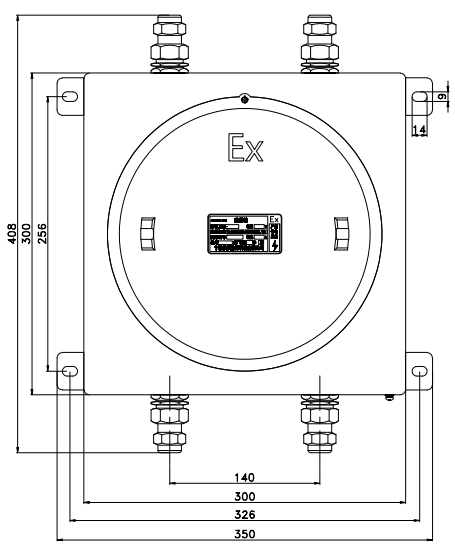

Parameters

Explosion-proof mark	ExdIIBT6/DIPA20TA,T6
Defend Grade	IP65
Corrosion grade	WF1
Ambient temperature	-40～+60℃
Atmospheric pressure	80～110KPa
Relative humidity	≤95%
Lead hole	2-G3/4”+2-G1”
Total Weight	3kg
Installation	Wall Mounted
