3×3 LED illuminated metal keypad for small control machine B861

Short Description:

With LED backlight, the keypad could be used in any outdoor small control machine which would running at night.

Our sales team has rich experience in industrial telecommunication filed for 18 years, so most of your problem could be solved by our sales if you would like to share.Surely they could offer timely and professional after-sales service.

Product Detail

Product Tags

Product Introduction

For all the control machine keypads, the interface could be customized freely to match with all the machines.


1. Material: 304# brushed stainless steel.
2. With conductive silicone rubber with corrosion resistance and anti-aging features.
3. Stainless steel keypad frame is available as customer’s request with difference size.
4. Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable
5. LED color is customized.
6.Buttons layout could be customized as clients’ request.
7.With the exception of the telephone, the keyboard can also be designed for other purposes.


va (2)

Normally used in door safety.



Technical data

Input Voltage


Waterproof Grade


Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 1 million cycles

Key Travel Distance


Working Temperature


Storage Temperature


Relative Humidity


Atmospheric Pressure


  LED color

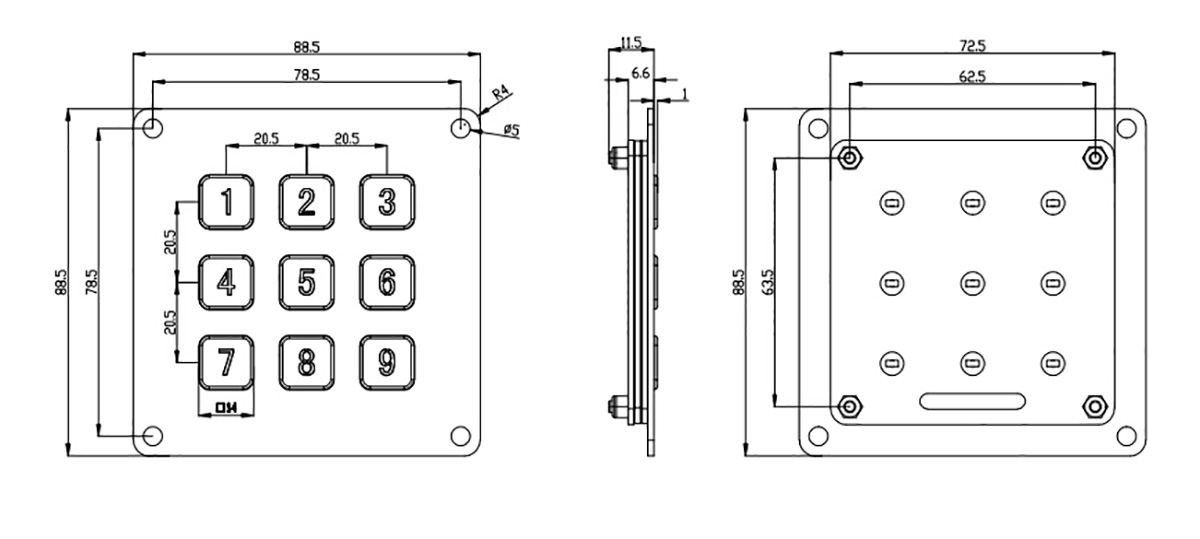

Dimension Drawing


Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color


If you have any color request, let us know.

Test machine


85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
