Auto-Dial Emergency Help Point with Camera Public Safety and Emergency Call Stations-JWAT420
This auto-dial emergency help point is Ideal for campus, subway station, bus station, parking lots, prisons, railway/metro platforms, hospitals, hotels, police stations, outside building etc.
-Camera Features of Auto-dial Emergency Help Point with camera
-Video Codec: H.264 HP、MPEG4 SP、MJPEG
-Resolution Ratio: 1,280*720@20 fps
-Sensitivity: 0.5Lux,1.0V/lux-sec (550nm)
-Viewing angle: 135′(H),109′(V)
-Video Compression Output: 16Kbps – 2Mbps
-FPS: 10-30 fps
-D-Range: 71dB（SNRMAX = 42.3dB）
- – Standard VoIP emergency help point with Video
- – Robust housing, constructed of stainless steel
- – Robust/Weather resistant: IP65
- – Finished in contrasting colours, with a raised 32 mm button. Raised text, Induction Loop facility for hearing impaired
- – Hands-free loudspeaking communications for any public area, with Media converter
- – Dual purpose design for surface or pillar mounting, simple installation
- – Support customized size, and print customized logo
- – Dual button autodial for emergency calls
- – External power supply or PoE (SIP)
- – RJ45 Port for SIP connection
- – CE, FCC, RoHS, ISO9001 compliant
Emergency help point telephone aimed for highway, campus high risk area. one button push to talk. Blue light flash. waterproof IP66 for outdoor for wide-area audio broadcast is desired.
The SOS emergency pillar JWAT420 for roads is made of high strength metal body, designed for outdoor use in the field of roads and motorways. It is usually equipped with a hands-free phone SOS JWAT420. Emergency Phone Towers are often used at university and college campuses, parking facilities, shopping malls, medical centers, industrial campuses and transit facilities where wide-area audio broadcast is desired.
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W |
| -Active:1.8W | |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | – 90~95dB(A) at a distance of 1 m |
| – 110dB(A) at a distance of 1 m (for external horn speaker) | |

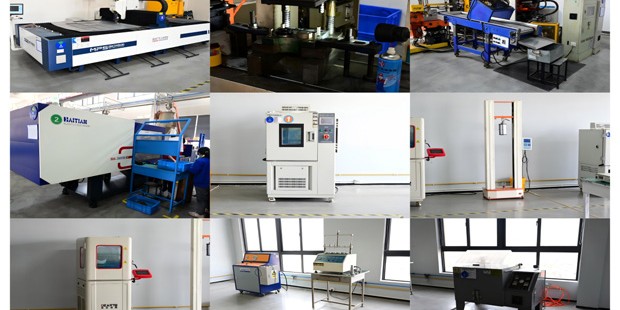

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly. Each machine is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
