Access Control Door Entry Keypad-B889

Short Description:

A door access control keypad is a security device that allows authorized individuals to gain entry to a secured area by entering a unique code, which allows multiple users to have their own unique access codes. The number of user codes supported can vary depending on the door access control keypad model. Outdoor access control keypads are usually weatherproof, with ratings such as IP65, to protect against dust and water ingress.


Product Detail

Product Tags

Product Introduction

The door access control keypad provides visual feedback, such as a green light for access granted or a red light for access denied. Also with beeps or other sounds to indicate successful or failed entry attempts. The door access control keypad could be surface-mounted or recessed, depending on the installation requirements. It works with various types of locks, including electric strikes, magnetic locks, and mortise locks.

Features

Electrical and data connections

Pin 1: GND-ground

Pin 2: V- --Power supply negative

Pin 3: V+ -- Power supply positive

Pin 4: Signal-Door/call bell-Open collector gate

Pin 5: Power- Power supply for door/call bell

Pin 6&7: Exit button- Remote/exit switch- to open door form secure area

Pin 8: Common- Door sensor common

Pin 9: NO sensor- Normally open door sensor

Pin 10: NC sensor- Normally closed door sensor

Note: When making connection to the door strike, select door sensor normally open or normally closed to suit the intended application and locking mechanism.

Installation instructions

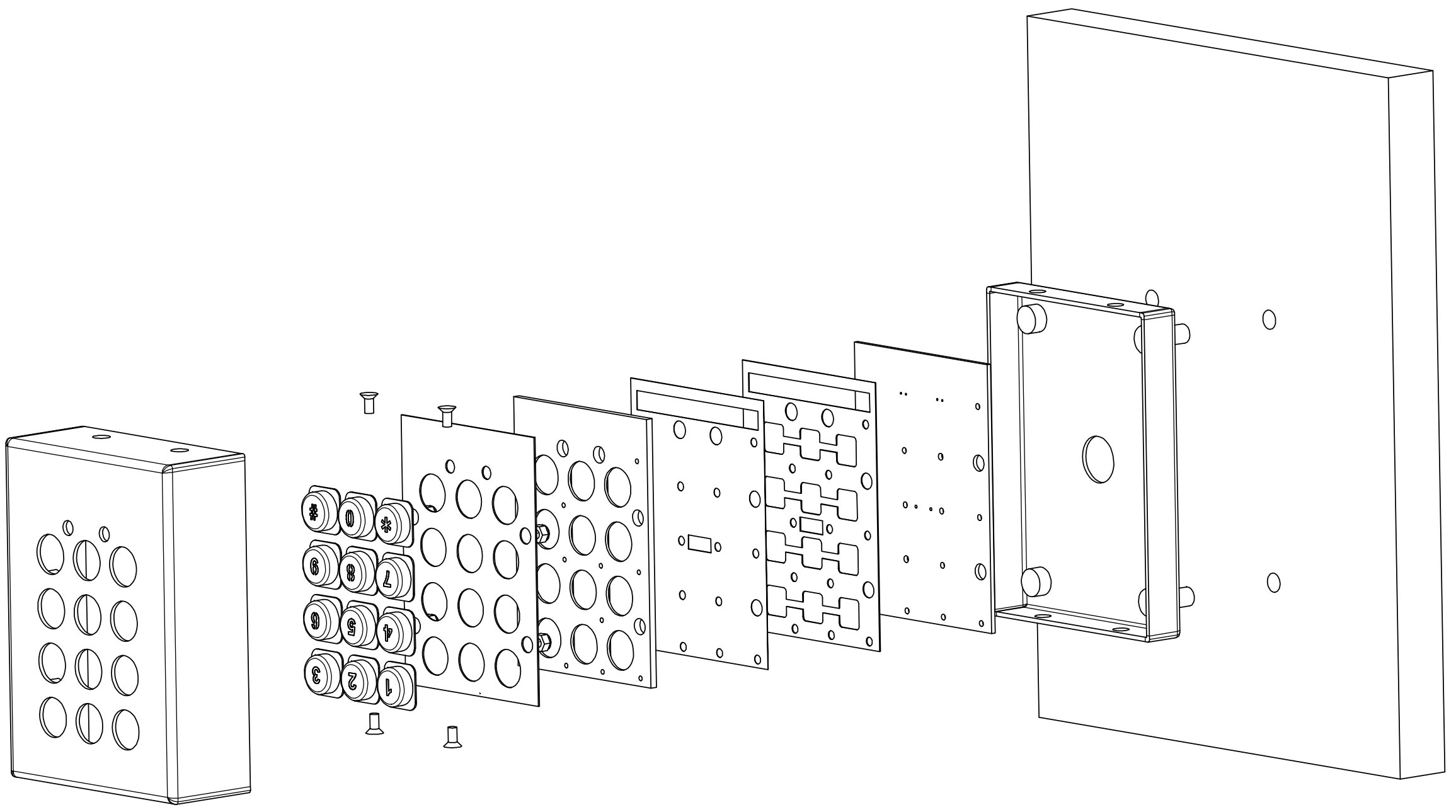

B889安装图

Fixing instructions: please read carefully before commencing installation.

A.Using the case as a template, mark the position of the four hoes on the surface.

B.Drill and plug the fixing holes to suit fixing screws(supplied).

C.Run the cable through the sealing grommet.

D.Secure the case to the surface using the fixing screws.

E.Make the electrical connections as shown in the below wiring diagram to the connector block.

Connect the casing to the earth.

F.Fix the keypad to the rear case case using the security screws(Use the nnylon sealing washers under the screw heads)

Parameters

Model No. B889
Waterproof Grade IP65
Power Supply 12VDC-24VDC
Standby Current Less than 30 mA
Working Method Code input
Storage User 5000
Door Strike Times 01-99 seconds adjustable
LED Illuminated Status Always Off/ Always On/ Delayed Off
Actuation Force 250g/2.45N(Pressure point)
Working Temperature -30℃~+65℃
Storage Temperature -25℃~+65℃
LED Color customized

Dimension Drawing

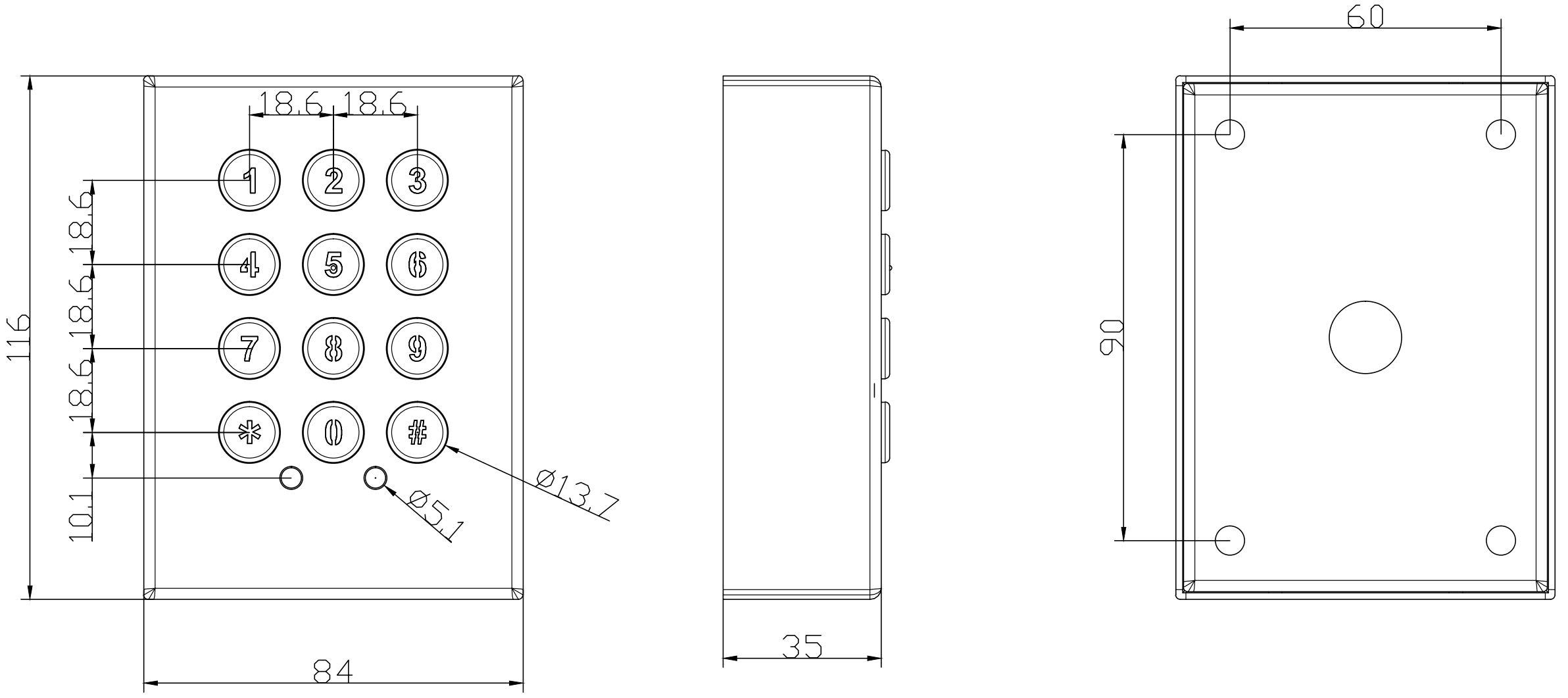

B889尺寸图

Available Connector

vav (1)

We offer full customization for any connector model. To ensure accuracy and perfect fit, please provide the specific item number in advance.

Test machine

avav

Our quality assurance for public terminals is exceptionally rigorous. We perform keystroke endurance tests exceeding 5 million cycles to simulate years of heavy use. Full-key rollover and anti-ghosting tests ensure accurate input even with multiple simultaneous presses. Environmental tests include IP65 validation for water and dust resistance and smoke resistance tests to ensure functionality in polluted air. Additionally, chemical resistance tests are conducted to guarantee the keypad can withstand frequent cleaning with disinfectants and solvents.
