Wireless Intercom Gateway JWDT61-8
JWDT61-8 is a wireless gateway with built-in radio and SIP modules, which enables interconnection between analog/digital two-way radios and SIP communication devices. Small, portable and powerful, JWDT61-8 gateway is compatible with mainstream analog/DMR II digital two-way radios and easy to deploy and manage. JWDT61-8 helps to build an interconnected communication system without changing the existing analog and digital communication systems. It is suitable for internal communication in different scenarios, such as community security, industrial parks, supermarkets, hospitality, campus security, etc.
1. Integrated intercom module in the UHF frequency band of 400-470MHz, which can be connected analog/digital walkie-talkie. Compatible with the standard SIP protocol, it can be connected to SIP communication devices
2. High compatibility, compatible with mainstream walkie-talkie brands such as MOTOROLA and Hytera
3. Supports high-definition voice, supports G.722 and Opus broadband encoding, supports VAD voice endpoint detection
4. Supports USB 2.0 interface and TF card slot for data storage or offline upgrade
5. Support call recording and view the call records initiated by SIP and walkie-talkies
6. Support 100-megabit dual network ports to provide network transmission
7. Support DC 12V power supply and PoE (at) power supply
8. Support the Web-based management mode
9. Support desktop and wall-mounted installation
| Power Supply | DC 12V 2A / PoE |
| Line | 1 analog /DMRII digital and 1 SIP line |
| Protocol | SIP (RFC 3261, RFC 2543, etc.) |
| Interface | 2 RJ45 ports / 1 TF slot / 1 USB 2.0 port |
| Speech coding | G.711, G.729, G.723 |
| Manage control | Web page management |
| Communication distance | zone:1 to 3 kilometers (depending on the environment) |
| Indicator light | Power /SIP call/ Walkies-talkie call |
| Operating temperature | -10℃ to 50℃ |
| Relative humidity | 10% to 95% |
| Installation methods | Desktop/wall-mounted |

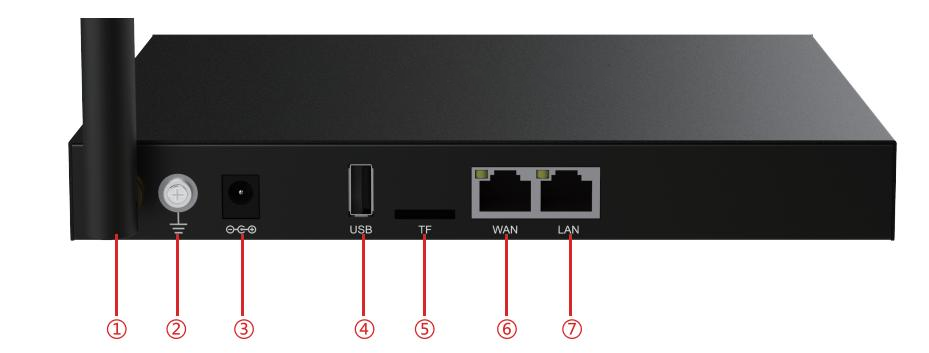

| Number | Name | Description |
| 1 | External antenna interface | Transmit and receive signals |
| 2 | Grounding screw interface | Grounding protection device to prevent leakage |
| 3 | Power interface | 12V/1.5A input, pay attention to internal positive and external negative |
| 4 | USB interface | External USB flash disk can be connected, up to 128G |
| 5 | TFcard interface | External USB flash disk can be connected, up to 128G |
| 6/7 | Ethernet WAN/LAN interface | Standard RJ45 interface, 10/100M adaptive, recommended to use Category 5 or super Category 5 network cable |
| Type | LED | Status |
| Power LED | Normally ON | Turn on power |
| SIP | Normally ON | Register successfully |
| Fast flashing | In the call | |
| Bicolor | Red normally ON | Emitting status |
| Green normally ON | Receiving status | |
| Bicolor/SIP | Fast flash at the same time | Power starting |
Color: black
Physical key: 1 reset key
Indicator lights x3: (status of power, SIP call and radio call)
DC interface x1: DC 12V/2A
RJ45 interfaces x2: connecting WAN and LAN
PoE enabled: Class 4, 802.3at, via WAN interface
TF interface x1: connecting TF card (128G max)
USB 2.0 interface x1: Standard A, for connecting USB card, recording storage, software upgrade.
Working temperature: -10℃ ~ 50℃
Storage temperature: - 20℃ ~ 60℃
Working humidity: 10%~95%
Installation: Desktop stand / Wall-mounted
N.W/CTN：8.8 kg
G.W/CTN：9.5 kg
Device dimension: 209x126x26.3 mm
Gift box dimension: 225x202x99 mm
Outer CTN dimension: 424x320x245 mm (10 PCS)
1. VoIP gateway integrating intercom module and SIP module;
2. Realize the interconnection and intercommunication among analog intercom, digital intercom and SIP communication terminals;
3. Small and portable, powerful in function, and compatible with most mainstream analog /DMR II digital walkies-talkies;
4. It is easy to deploy and can quickly integrate the existing analog, digital and SIP communication devices to build an interconnected communication system. It is suitable for internal communication usage scenarios such as community property management, industrial parks, hotels and supermarkets, medical assistance, and campus security.
