VoIP Amplifier JWDTE02
JWDTE02 pre-amplifier, also known as an IP power amplifier, is primarily suitable for various audio system applications. Its key feature is its support for multiple signal inputs, including three line inputs, two MIC inputs, and one MP3 input, to meet diverse audio source requirements. Its wide operating range, from -20°C to 60°C and humidity ≤ 90%, ensures stable operation in all environments. It also features a waterproof design, achieving IPX6 protection. Built-in overheating protection ensures safety. Furthermore, its strong frequency response and excellent distortion protection ensure high-quality sound. With selectable communication protocols and high cost-effectiveness have earned it widespread acclaim in applications such as campuses, scenic spots and airports.
1. One RJ45 interface, supporting SIP2.0 and other related protocols, with direct access to Ethernet, cross-segment and cross-route.
2. High-grade aluminum 2U black brushed panel, beautiful and generous.
3. Five signal inputs (three microphones, two lines).

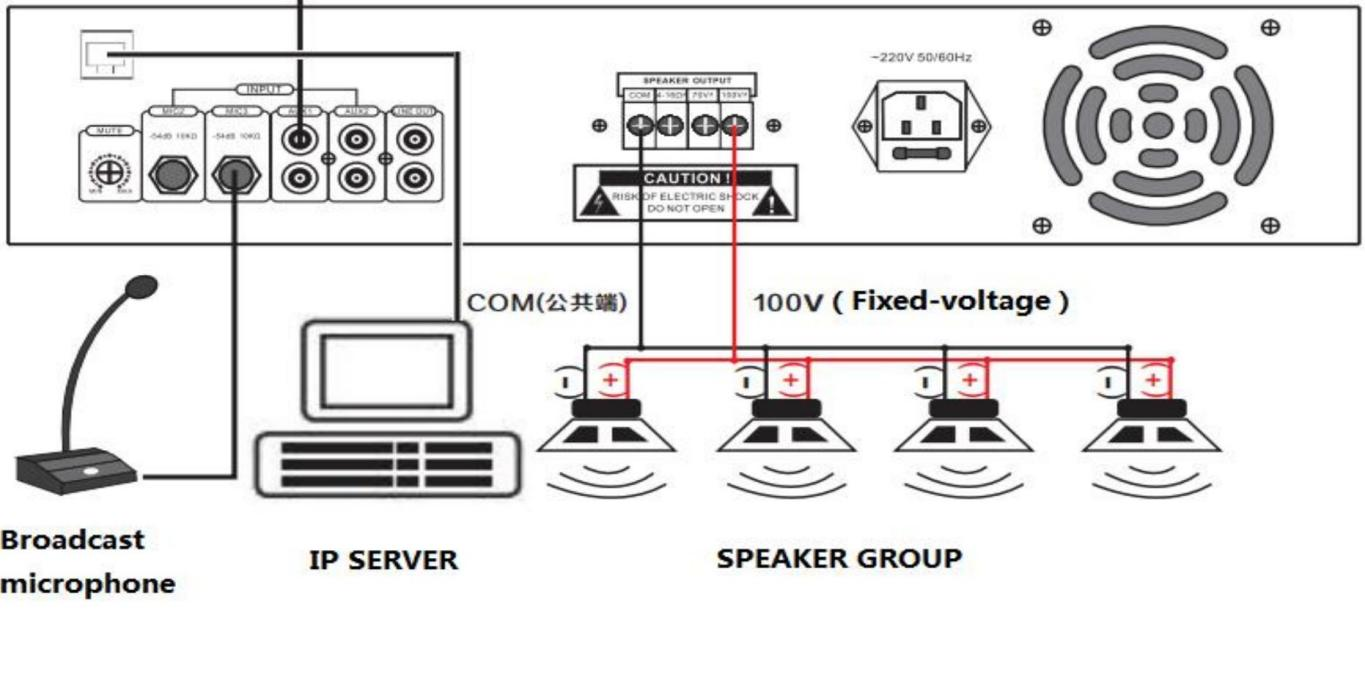

4. 100V, 70V fixed voltage output and 4~16Ω fixed resistance output. POWER :240-500W
5. Total volume modulation function, each input channel volume independent adjustment.
6. Independent adjustment of high and low tones.
7. MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to - 30dB.
8. Five-unit LED level display, dynamic and clear.
9. With perfect output short circuit protection and over temperature protection function.
10. Built-in signal muting circuit, better reduce the output bottom noise.
11. with an auxiliary audio output interface, easy to connect the next amplifier.
12. The output adopts industrial fence type terminals for more reliable connection.
13. Temperature control start of the cooling fan.
14. Very suitable for medium and small public occasions broadcast use.
| Supported protocols | SIP (RFC3261, RFC2543) |
| Power supply | AC 220V +10% 50-60Hz |
| Output power | 70V/100V constant voltage output |
| Frequency response | 60Hz - 15kHz (±3dB) |
| Non-linear distortion | <0.5% at 1kHz, 1/3 rated output power |
| Signal-to-noise ratio | Line: 85dB, MIC: >72dB |
| Adjustment range | BASS: 100Hz (±10dB), TREBLE: 12kHz (±10dB) |
| Output adjustment | <3dB from no signal static to full load operation |
| Function control | 5* volume controls, 1* bass/treble control, 1* mute control, 1* power supply |
| Cooling method | DC 12V fan with forced air cooling |
| Protections | AC fuse x8A, load short circuit, over-temperature |
This IP amplifier widely used in broadcasting places of command and dispatch systems of public security, armed police, fire protection, army, railway, civil air defense, industrial and mining enterprises, forestry, petroleum, electricity, and government to achieve rapid response to emergency disposal and integrated communication of multiple communication means.
