Touch Screen Console IP Phone JWA320i
JWA320i is a visualization paging console phone for industry customers. It is equipped with a gooseneck microphone and supports HD hands-free calling. Featuring 112 DSS keys, a 10.1-inch color touch screen, Wi-Fi, and Bluetooth, the JWA320i enables smart and simple daily communication. It has a built-in adjustable camera and an HD PTM handset, delivering a great audio and video experience for group conferences. JWA320i has a built-in broadcasting system that is compatible with the standard SIP protocol, making it an ideal choice for management centers or command centers with functions such as making video call, two-way intercom, monitoring, and broadcasting.
1. 20 SIP lines, 10-party audio conference,3-party video conference
2. Equipped with a PTM handset, standard/PTT handset is optional
3. Equipped with a gooseneck microphone for further sound pickup distance
4. Integrate a public address software to build a broadcasting system
5. Built-in adjustable 8 mega-pixel camera with a privacy cover
6. 112 DSS softkeys on 10.1” touch screen
7. HD audio on speaker and handset
8. Support Bluetooth 5.0 and 2.4G/5G Wi-Fi
9. Video Codec H.264, support video call.
10. Dual Gigabit ports, PoE Integrated.
1. Local Phonebook (2000 entries)
2. Remote Phonebook (XML/LDAP, 2000 entries)
3. Call logs (In/out/missed, 1000 entries)
4. Black/White List Call Filtering
5. Screen saver
6. Voice Message Waiting Indication (VMWI)
7. Programmable DSS/Soft keys
8. Network Time Synchronization
9. Built-in Bluetooth 5.0
10. Built-in Wi-Fi
✓ 2.4GHz, 802.11 b/g/n
✓ 5GHz, 802.11 a/n/ac
11. Action URL / Active URI
12. uaCSTA
13. Audio/Video recording
14. SIP Hotspot
15. Group broadcasting
16. Action plan
17. Group listening
| Call Features | Audio |
| Call out / Answer / Reject | HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) |
| Mute / Unmute (Microphone) | HAC handset |
| Call Hold / Resume | Wideband ADC/DAC 16KHz Sampling |
| Call Waiting | Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC |
| Intercom | Wideband Codec: G.722, Opus |
| Caller ID Display | Full-duplex Acoustic Echo Canceller (AEC) |
| Speed Dial | Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE) / Noise Reduction (NR) |
| Anonymous Call (Hide Caller ID) | Packet Loss Concealment (PLC) |
| Call Forwarding (Always/Busy/No Answer) | Dynamic Adaptive Jitter Buffer up to 300ms |
| Call Transfer (Attended/Unattended) | DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO |
| Call Parking/Pick-up (Depending on server) | |
| Redial | |
| Do-Not-Disturb | |
| Auto-Answering | |
| Voice Message (On server) | |
| 3-way Conference | |
| Hot Line | |
| Hot desking |

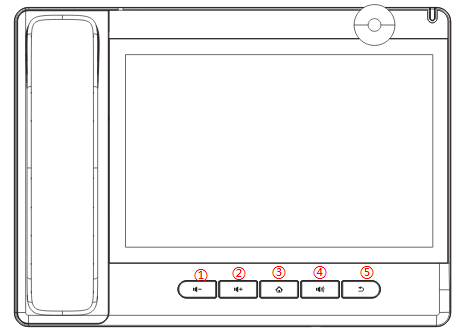

| Number | Name | Instruction |
| 1 | Volume down | Decrease volume |
| 2 | Volume up | Increase volume |
| 3 | Home keys | Hands-free key, Activate/deactivate hands free |
| 4 | Hands-free | The user can press this key to open the audio channel of the speakerphone. |
| 5 | Return key | Press in the detailed interface to return to the previous page, if in the application program, it is to exit the current program. |
