IPPBX JWDT-P120
JWDT-P120-1V1S1O gateway is a multi-functional and all-in-one gateway, which integrates voice service (VoLTE, VoIP and PSTN) and data service (LTE 4G/WCDMA 3G). It provides three interfaces (including LTE, FXS and FXO), offering seamless connectivity to VoIP Network, PLMN and PSTN.
Based on SIP, JWDT-P120 V1S1O not only can interact with IPPBX, softswitch and SIP-based network platforms, but also supports types of WCDMA/LTE frequency ranges, thus meeting the worldwide network requirements. Besides, the gateway has built-in WiFi and high-speed data handling capacity, allowing users to enjoy high-speed internet surfing through WiFi or LAN ports.
JWDT-P120-1V1S1O is ideally suitable for personal use. Meanwhile, it is perfect for small and micro enterprises, offering high-speed internet access, good voice service and message service.
1. Integration of multiple networks include FXO (CO), FXS, GSM/VoLTE and VoIP/SIP
2. Modular design with selections of FXS/FXO module, GSM/LTE module
3. Open standard SIP, easy to integrate with different SIP endpoints
4. Voice Mail and Integrated Auto-attendant, Voice Recording
5. Easy to integrate Wi-Fi desk phone, Wi-Fi handsets with SIP through Wi-Fi hotspot
6. Powerful performance, with up to 60 SIP Extensions and 15 concurrent calls
7. User-friendly web interface, multiple management ways
JWDT-P120 is a VoIP PBX phone system designed for small and medium sized enterprises to boost productivity, improve efficiency and reduce telephony and operational cost. As a converged platform offering diverse connectivity to all networks like FXO (CO), FXS, GSM/VoLTE and VoIP/SIP, supporting up to 60 users, JWDT-P120 allows businesses take advantage of state-of-art technology and enterprise class features with small investments, delivers high performance and superior quality to meet the communication needs of today and tomorrow.

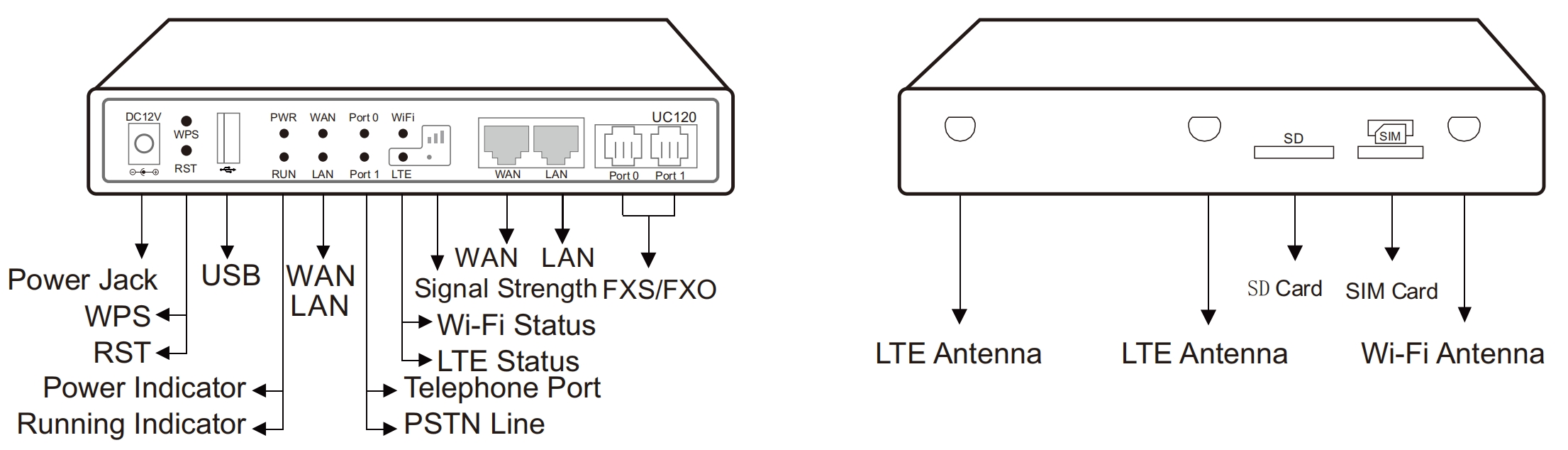

| Indicators | Definition | Status | Description |
| PWR | Power Indicator | ON | The device is switched on. |
| OFF | The power is switched off or there is no power supply. | ||
| RUN | Running Indicator | Slow Flashing | The device is running properly. |
| Fast Flashing | The device is initializing. | ||
| ON/OFF | The device is running improperly. | ||
| FXS | Telephone In-use Indicator | ON | FXS port is in use status. |
| OFF | FXS port is faulty. | ||
| Slow Flashing | FXS port is in idle status. | ||
| FXO | FXO In-use Indicator | ON | FXO port is in use status. |
| OFF | FXO port is faulty. | ||
| Slow Flashing | FXO port is in idle status. | ||
| WAN/LAN | Network Link Indicator | Fast Flashing | The device is properly connected to network. |
| OFF | The device is not connected to network or network connection is working in the improper way. | ||
| GE | Fast Flashing | The device is properly connected to network. | |
| OFF | The device is not connected to network or network connection is working in the improper way. | ||
| Network Speed Indicator | ON | Work at 1000 Mbps speed | |
| OFF | Network speed lower than 1000 Mbps | ||
| Wi-Fi | Wi-Fi Enable/Disable Indicator | ON | Wi-Fi modular is faulty. |
| OFF | Wi-Fi is disabled or faulty. | ||
| Fast Flashing | Wi-Fi is enabled. | ||
| SIM | LTE Indicator | Fast Flashing | SIM card is detected and registered to mobile network successfully. The indicator flashes every 2 seconds. |
| Slow Flashing | The device cannot detect with LTE/GSM module, or LTE/GSM module is detected but SIM card is not detected; The indicator flashes every 4 seconds. | ||
| RST | / | / | The port is used to restart device. |
