IPPBX JWDT-P120
JWDT-P120-1V1S1O gateway is a multi-functional and all-in-one gateway, which integrates voice service (VoLTE, VoIP and PSTN) and data service (LTE 4G/WCDMA 3G). It provides three interfaces (including LTE, FXS and FXO), offering seamless connectivity to VoIP Network, PLMN and PSTN.
Based on SIP, JWDT-P120 V1S1O not only can interact with IPPBX, softswitch and SIP-based network platforms, but also supports types of WCDMA/LTE frequency ranges, thus meeting the worldwide network requirements. Besides, the gateway has built-in WiFi and high-speed data handling capacity, allowing users to enjoy high-speed internet surfing through WiFi or LAN ports.
JWDT-P120-1V1S1O is ideally suitable for personal use. Meanwhile, it is perfect for small and micro enterprises, offering high-speed internet access, good voice service and message service.
1. Supports up to 500 SIP users and 30 concurrent calls
2. Supports 2 FXO and 2 FXS ports with lifeline capability
3. Flexible dial rules based on time, number or source IP etc.
4. Supports Multi-level IVR(Interactive Voice Response)
5. Built-in VPN server/client
6. Support voicemail/ Voice recording
7. User-friendly web interface, classification of web user’s rights
JWDT-P200 is an IP telephony system, which is used to help small and medium-sized enterprises establish a convenient and high-efficient communication way. JWDT-P200 is an IP telephony system, which is used to help small and medium-sized enterprises establish a convenient and high-efficient communication way. Besides, Uc 200 supports VPN, encryption and security strategies, and thus ensures secure communication. lt can be widely used in small and medium-sized call centers, enterprise branches to improve work efficiency and save communication cost.

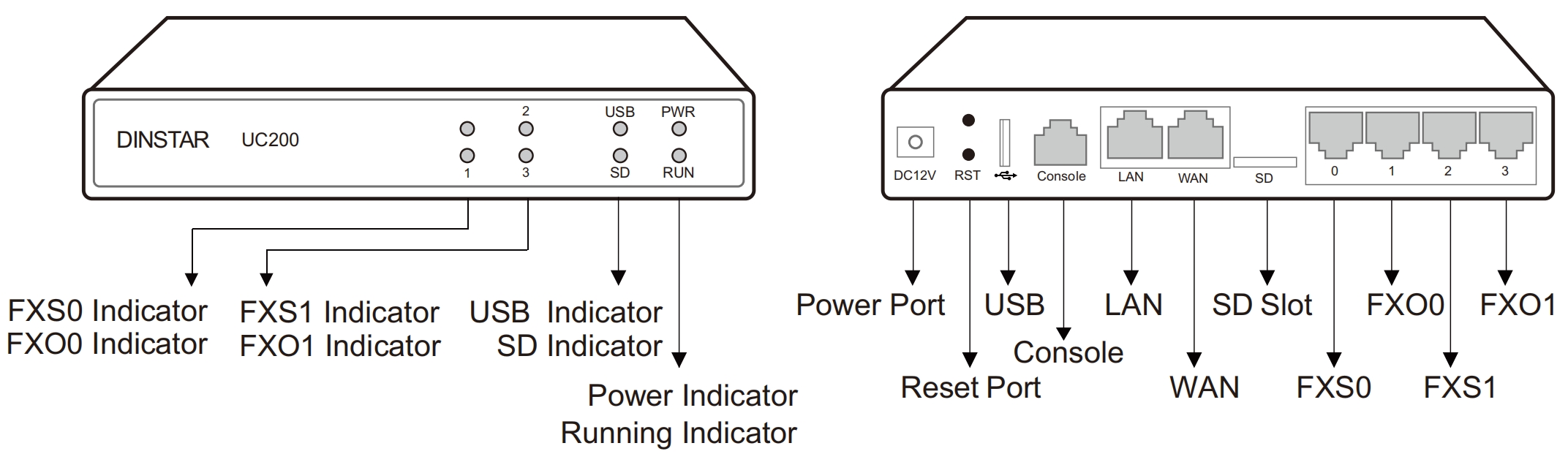

| Indicators | Definition | Status | Description |
| PWR | Power Indicator | ON | The device is switched on. |
| OFF | The power is switched off or there is no power supply. | ||
| RUN | Running Indicator | Slow Flashing | The device is running properly. |
| Fast Flashing | The device is initializing. | ||
| ON/OFF | The device is running improperly. | ||
| FXS | Telephone In-use Indicator | ON | FXS port is in use status. |
| OFF | FXS port is faulty. | ||
| Slow Flashing | FXS port is in idle status. | ||
| FXO | FXO In-use Indicator | ON | FXO port is in use status. |
| OFF | FXO port is faulty. | ||
| Slow Flashing | FXO port is in idle status. | ||
| WAN/LAN | Network Link Indicator | Fast Flashing | The device is properly connected to network. |
| OFF | The device is not connected to network or network connection is working in the improper way. | ||
| GE | Fast Flashing | The device is properly connected to network. | |
| OFF | The device is not connected to network or network connection is working in the improper way. | ||
| Network Speed Indicator | ON | Work at 1000 Mbps speed | |
| OFF | Network speed lower than 1000 Mbps | ||
| Wi-Fi | Wi-Fi Enable/Disable Indicator | ON | Wi-Fi modular is faulty. |
| OFF | Wi-Fi is disabled or faulty. | ||
| Fast Flashing | Wi-Fi is enabled. | ||
| SIM | LTE Indicator | Fast Flashing | SIM card is detected and registered to mobile network successfully. The indicator flashes every 2 seconds. |
| Slow Flashing | The device cannot detect with LTE/GSM module, or LTE/GSM module is detected but SIM card is not detected; The indicator flashes every 4 seconds. | ||
| RST | / | / | The port is used to restart device. |
| Model/Ports | WAN | LAN | LTE | FXS | FXO |
| JWDT-P120-1V1S1O | 1 | 1 | 1 | 1 | 1 |
| JWDT-P120-1V2S | 1 | 1 | 1 | 2 | NA |
| JWDT-P120-1V2O | 1 | 1 | 1 | NA | 2 |
| JWDT-P120-1S1O | 1 | 1 | NA | 1 | 1 |
| JWDT-P120-2S | 1 | 1 | NA | 2 | NA |
| JWDT-P120-2O | 1 | 1 | NA | NA | 2 |
| JWDT200-2S2O | 1 | 1 | NA | 2 | 2 |
