IP alarm gateway JWDTD01
Serving as a gateway between different networks, JWDTD01 IP alarm gateway enables cross-segment communication and packet routing. For example, it can forward local alarm signals to a remote monitoring center via the gateway. And it is widely used in such typical applications like security systems and industrial scenarios with bellowing working principle.
Security Systems: Linked with access control systems and cameras, automatically sending video streams to a management platform when an alarm is triggered.
Industrial Scenarios: Resolving device IP conflicts or network segment isolation issues, enabling multi-network connectivity through NAT.

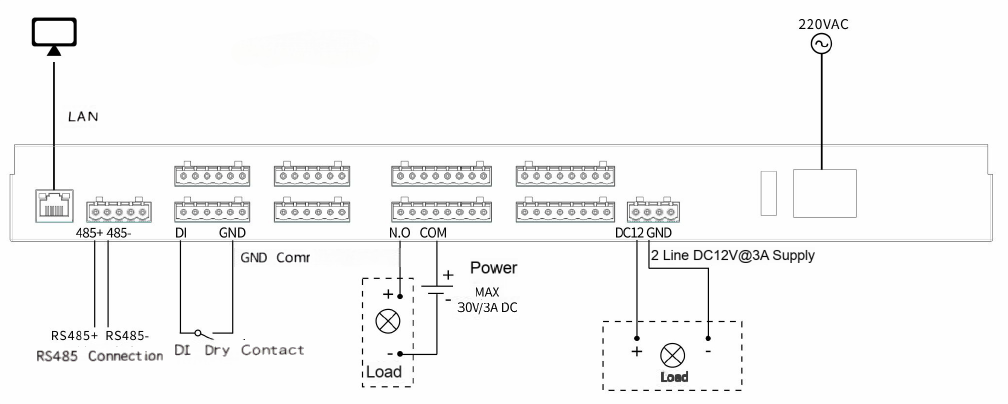

PWR: Power indicator, device power on that is on, power off that is off
RUN: equipment running indicator, normal operation every is interval blinking
SPD: Network bandwidth indicator, always on when accessing 100M network
Ethernet port: 10/100M Ethernet
Power output port: DC 12V output port
| Power voltage | AC220V/50Hz |
| Power supply interface | With power adaptor |
| Frequency response | 250～3000Hz |
| Protocol | Standard Modbus TCP protocol |
| DI interface form | Phoenix terminal, dry contact acquisition |
| DO contact capacity | DC 30 V /1.35 A |
| RS485 interface lightning protection level | 2 KV /1 KA |
| Network port interface form | One RJ45 network port |
| Transmission distance | 100 m |
| Degree of protection | IP54 |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | 5% ~ 95% RH non-condensing |
| Operating temperature | -40℃ ~ 85℃ |
| Storage temperature | -40℃ ~ 85℃ |

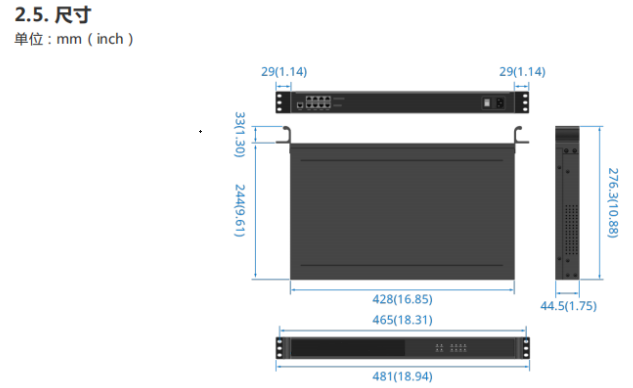

| Installation method | Rack mount |
Widely used in alarm linkage places such as chemical plants and pipe corridors
