FXS VoIP Gateway JWAG-8S
JWAG-8S Analog VoIP Gateways are cutting-edge products that connect analogue telephones, fax machines and PBX systems with IP telephone networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, JWAG-8S is ideal for small and medium enterprises that wish to integrate a traditional analogue telephone system into IP-based system. JWAG-8S helps them to preserve previous investment on analogue telephone system and reduce communication costs significantly with the true benefits of VoIP.
1. 4/8 FXS ports
2. Fully compliant with SIP and IAX2
3. Hunt Group
4. Configurable VoIP Server templates
5. Reliable FAX performance with T.38
6. 3-party conference
7. Direct IP Calling
8. Blind/Attended Transfer
9. Support RADIUS protocol
This voice gateway is an analog VoIP voice gateway for carriers and enterprises. It uses standard SIP and IAX protocols and is compatible with various IPPBX and VoIP voice platforms (such as IMS, softswitch system, and call center). It can meet networking requirements in different network environments. The full range of gateway products covers 8-32 voice ports, the device uses a high-performance processor, has a large capacity, full concurrent call processing capability, and has carrier-class stability.
| Power supply | 12V, 1A |
| Interface type | RJ11/RJ12(16/32 Eloquence) |
| Network port | 100M adaptive Ethernet port |
| Communication protocol | SIP (RFC3261), IAX2 |
| Transport protocols | UDP, TCP, TLS, SRTP |
| Management protocol | SNMP, RADIUS, TR-069 |
| Signaling | FXS Loop Start,FXS Kewl Start |
| Firewall | Built-in firewall,IP blacklist, attack alert |
| Voice features | Echo cancellation and dynamic voice jitters buffering |
| Call processing | Caller ID, call waiting, call transfer, explicit call forwarding, blind transfer, Do Not Disturb, call hold background music, signal tone setting, three-way conversation, abbreviated dialing, routing based on calling and called numbers, number change, hunt group, and hot line functions |
| Operating temperature | 0°C to 40°C |
| Relative humidity | 10%~90% (no condensation) |
| Size | 200×137×25/440×250×44 |
| Weight | 0.7/1.8 kg |
| Installation Mode | Desktop or rack type |
| Location | No. | Feature | Description |
| Front Panel | 1 | Power Indicator | Indicates the power status |
| 2 | Run Indicator | Indicates the system status. • Blinking: The system is working properly. • Not Blinking/Off: The system goes wrong. |
|
| 3 | LAN Status Indicator | Indicates the LAN status. | |
| 4 | WAN Status Indicator | Reserved | |
| 5 | FXS Ports Status Indicator | Indicates the FXS ports status.• Solid green: The port is idle or no line is connected to the port. • Green light blinking: There is a call reaches the port or the port is busy in a call. Notes: The FXS indicators 5-8 are invalid. |
|

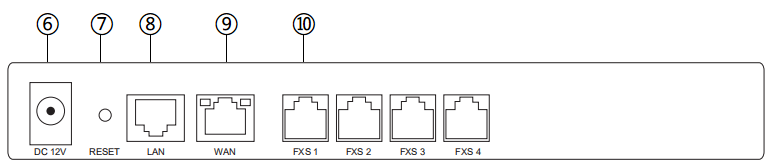

| Rear Panel | 6 | Power in | For connection to power supply |
| 7 | Reset Button | Press and hold for 7 seconds to reset to factory defaults.Note: Do NOT press this button for a long time, or the system would break down. | |
| 8 | LAN port | For connection to Local Area Network (LAN). | |
| 9 | WAN port | Reserved. | |
| 10 | RJ11 FXS Ports | For connection to analog phones or fax machines. |

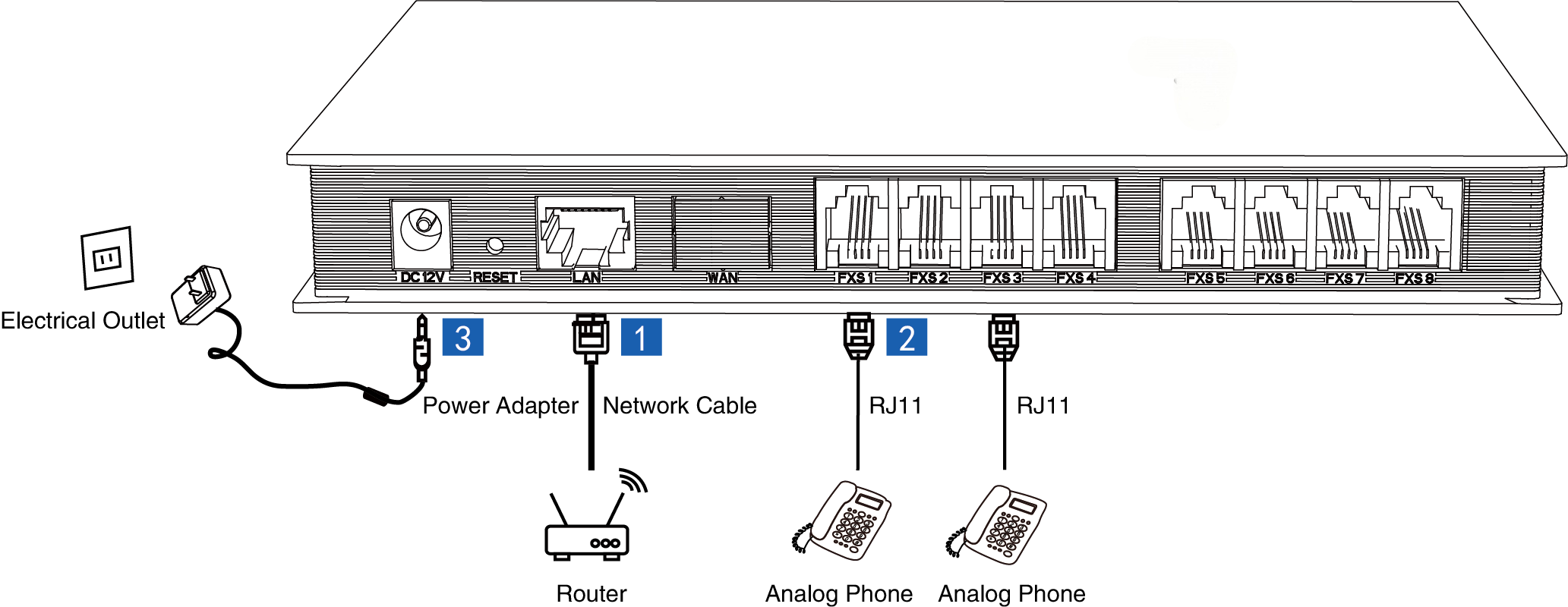

1. Connect JWAG-8S gateway to the Internet-LAN port can be connected to router or PBX.
2. Connect TA gateway to analog phones - FXS ports can be connected to analog phones.
3. Power on TA gateway - Connect one end of the power adapter to the gateway power port and plug the other end into an electrical outlet.
