FXO VoIP Gateway JWAG-8O
JWAG-8O Analog VoIP Gateways are cutting-edge products that connect analogue telephones, fax machines and PBX systems with IP telephone networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, JWAG-8O is ideal for small and medium enterprises that wish to integrate analogue telephone system into IP-based system. JWAG-8O helps them to preserve previous investment on analogue telephone system and reduce communication costs significantly with the true benefits of VoIP.
1. Two types of desktop/rack, suitable for different scale scenarios.
2. 8 analog external interface, support RJ11 interface, to meet different customer deployment requirements.
3. Follow the standard communication protocol support SIP/IAX protocol, can be interworked with various IMS/ softswitch system.
4. Rich speech coding support G.711 (alaw/ulaw), G.722, G.723, G.726,G.729A, GSM, ADPCM a variety of codec algorithms.
5. High-quality voice, using advanced carrier-grade G.168 line echo cancellation, excellent voice quality.
6. QoS guarantee, support port-based priority control, ensure the high priority of voice message transmission in the network, to ensure the voice quality.
7. High reliability, support TLS/SRTP/HTTPS and other encryption methods, signaling and media stream encryption/decryption.
8. Support over current and over voltage protection mechanism (ITU-T, K.21).
9. Management mechanism, built-in Web configuration, provide visual management interface.
1. 4/8 FXO ports
2. Fully compliant with SIP and IAX2
3. Flexible calling rules
4. Configurable VoIP Server templates
5. Codec: G711 a/u-law, G722, G723, G726, G729A/B, GSM, ADPCM
6. Echo Cancellation: ITU-T G.168 LEC
7. Web-based GUI for easy configuration and management
8. Excellent interoperability with a wide range of IP equipment
The analog VoIP gateway for carriers and enterprises uses standard SIP and IAX protocols, and is compatible with various IPPBX and VoIP platforms (such as IMS, softswitch systems, and call centers), meeting networking requirements in different network environments. The device uses a high-performance processor, has a large capacity, full concurrent call processing capability, and has carrier-class stability.
| Power supply | 12V, 1A |
| Communication protocol | SIP (RFC3261), IAX2 |
| Transport protocols | UDP, TCP, TLS, SRTP |
| Signaling | FXO, Loop, Start, FXO, Kewl, Start |
| Firewall | Built-in firewall,IP blacklist, attack alert |
| Voice features | Echo cancellation and dynamic voice jitters buffering |
| Call processing | Caller ID, call waiting, call transfer, explicit call forwarding, blind transfer, Do Not Disturb, call hold background music, signal tone setting, three-way conversation, abbreviated dialing, routing based on calling and called numbers, number change, hunt group, and hot line functions |
| Operating temperature | 0°C to 40°C |
| Relative humidity | 10~90% (no condensation) |
| Size | 200×137×25/440×250×44 |
| Weight | 0.7/1.8 kg |
| Installation Mode | Desktop or rack type |

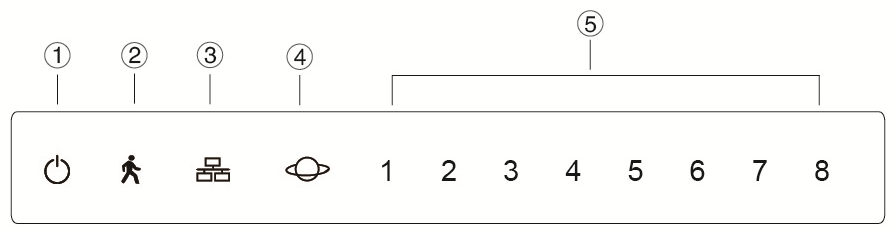

| Location | No. | Feature | Description |
| Front Panel | 1 | Power Indicator | Indicates the power status |
| 2 | Run Indicator | Indicates the system status. • Blinking: The system is working properly. • Not Blinking/Off: The system goes wrong. |
|
| 3 | LAN Status Indicator | Indicates the LAN status. | |
| 4 | WAN Status Indicator | Reserved | |
| 5 | FXO Ports Status Indicator | Indicates the FXO ports status. • Solid red: Public Telephone Network (PSTN) is connected to the port. • Red light blinking: No Public Telephone Network(PSTN) is connected to the port. Notes: The FXO indicators 5-8 are invalid. |
|

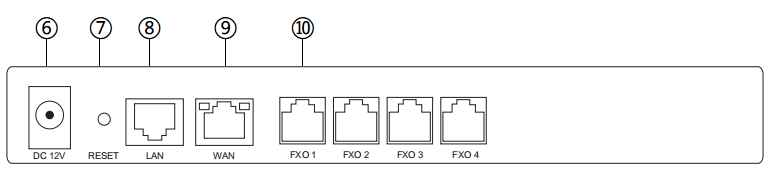

| Rear Panel | 6 | Power in | For connection to power supply |
| 7 | Reset Button | Press and hold for 7 seconds to reset to factory defaults. Note: Do NOT press this button for a long time, or the system would break down. |
|
| 8 | LAN port | For connection to Local Area Network (LAN). | |
| 9 | WAN port | Reserved. | |
| 10 | RJ11 FXO Ports | For connection to Public Telephone Network(PSTN). |

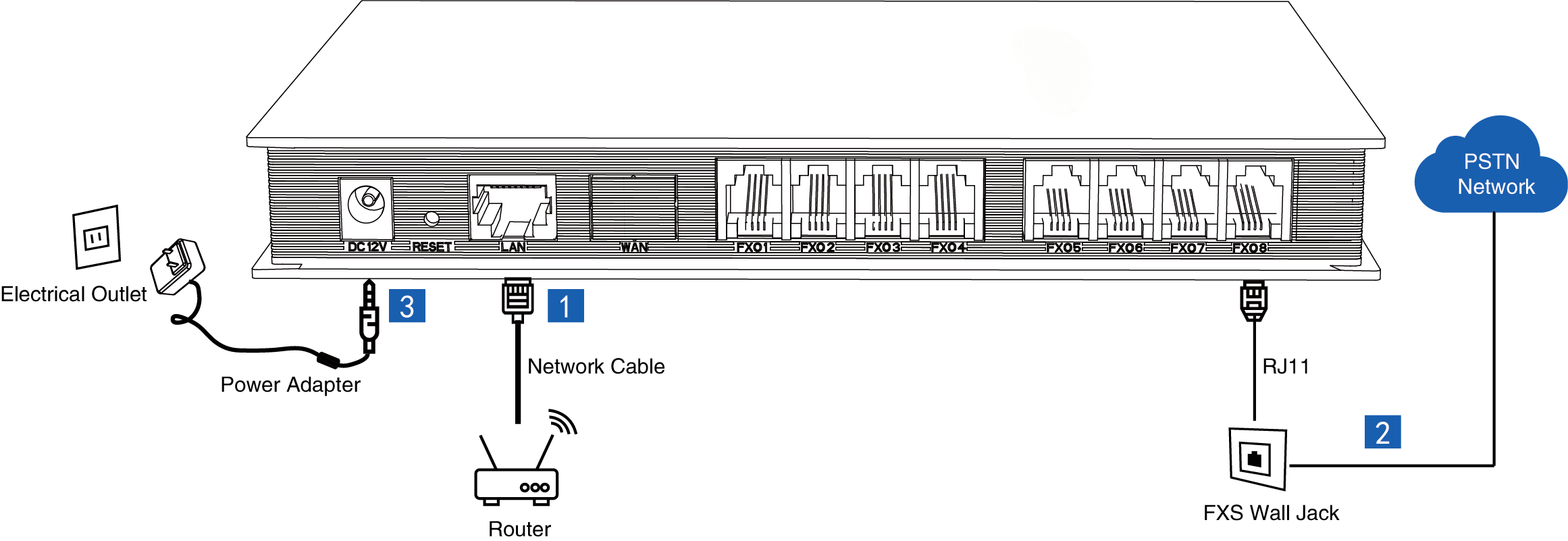

1. Connect JWAG-8O gateway to the Internet - LAN port can be connected to router or PBX.
2. Connect JWAG-8O gateway to PSTN - FXO ports can be connected to PSTN.
3. Power on JWAG-8O gateway - Connect one end of the power adapter to the gateway’s power port and plug the other end into an electrical outlet.
