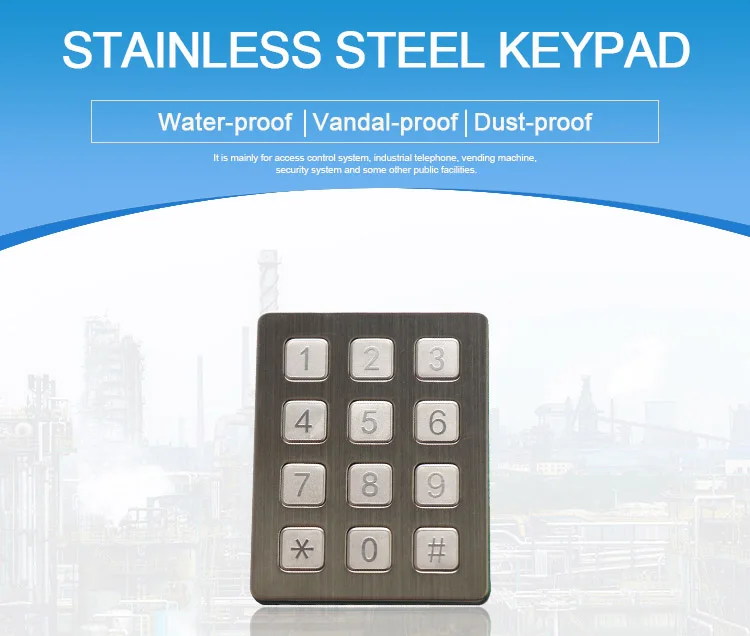

Stainless steel 12 keys payment kiosk outdoor keypad-B720

Technical Parameters

Input Voltage	3.3V/5V
Waterproof Grade	IP65
Vandal roof Grade	IK09
Working Life	More than 1 million time per key
Key Elasticity	250g/2.45N
Key Travel Distance	0.45mm
Working Temperature	-25℃~+65℃
Storgage Temperature	-40℃~+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60Kpa-106Kpa



Features

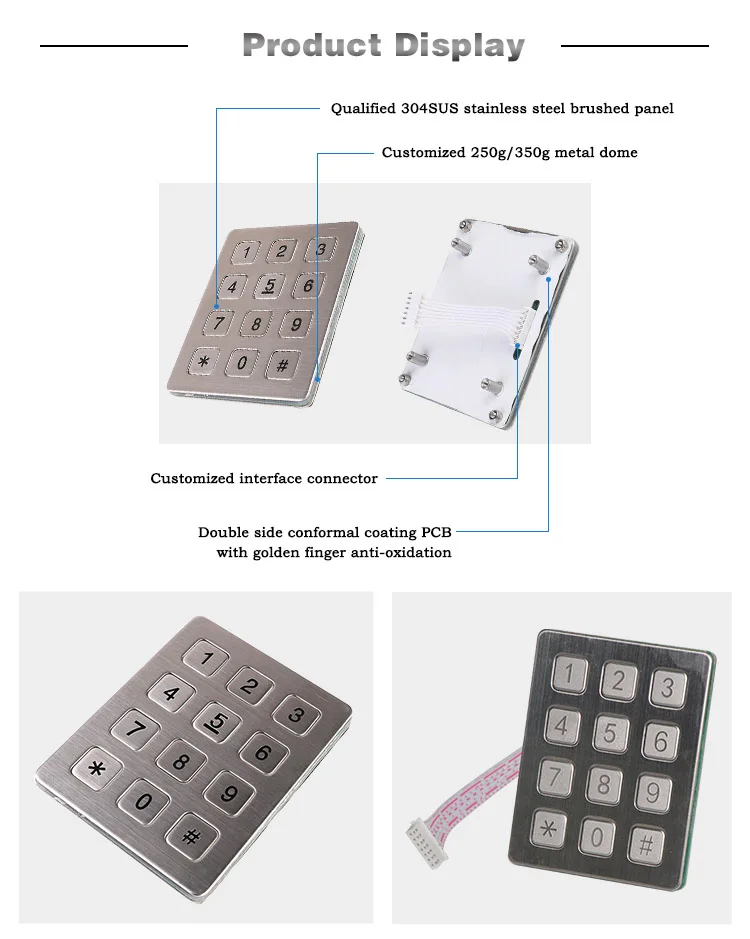

1.Keypad made of stainless steel.Vandal resistance.

2.Font button surface and pattern can be customized according to customer requirements

3.Double-sided board,Good for contact of gold-finger.

4.3X4 layout, Matrix design. 10 number buttons and 2 function buttons
Users select

1.Buttons layout could be customized as clients’ request.

2.With the exception of the telephone, the keyboard can also be designed for other purposes
