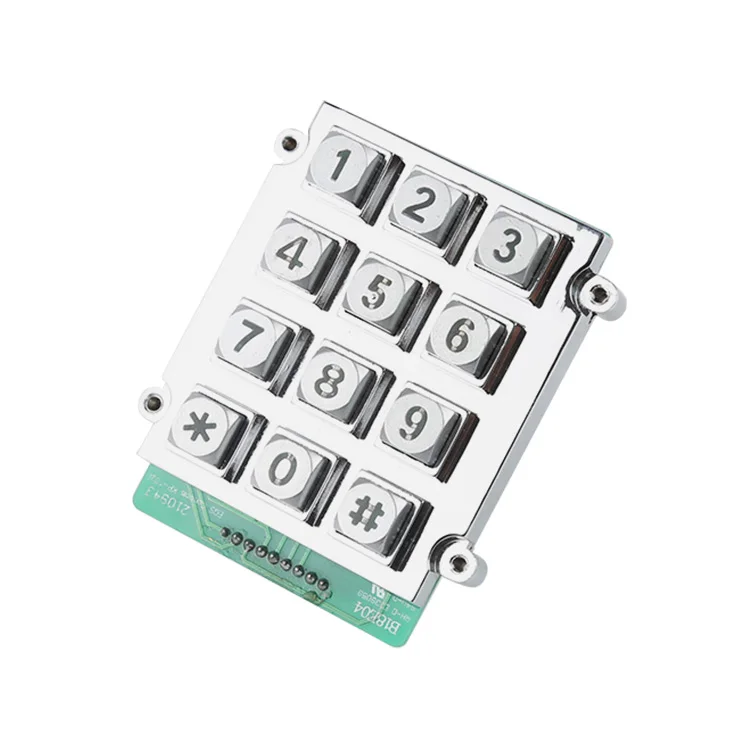

Digital Lighted Keys Keypad for access control


  • Button material: Zinc alloy
  • Service life: >2million
  • Interface : Pins header/XH plug/USB/DB9
  • Price: $6.5-$11/unit
  • Warranty: 1 year
  • LED color: Blue/Green/Yellow/White/Red
  • Product Detail

    Product Tags

    Products Description
    Product Features

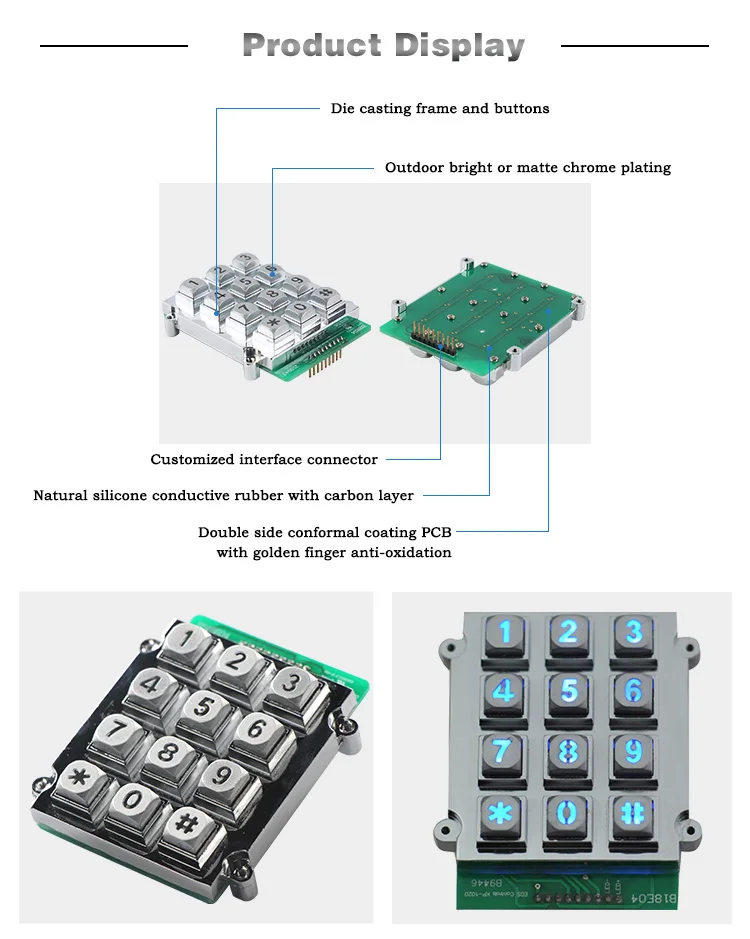

    Material:Zinc Alloy.
    Main feature:Double side PCB with golden finger, resistance to oxidation
    Signal:Regular 3×4 matrix signal
    Qty/Carton:80pcs/carton
    Carton size:42x35x12.5cm
    Keys layout:Customized

    Special Features:

    1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

     2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments. .
    Technical Specification
    Input Voltage
    3.3V/5V
    Waterproof Grade
     IP65
    Vandal roof Grade
    lK09
    Working Life
    More than 1 million time per key
    Key Elasticity
    250g/2.45N
    Key Travel Distance
    0.45mm
    Storgage Temperature
    -25℃~+65℃
    Working Temperature
    -40℃~+85℃
    Relative Humidity
    30%-95%
    Atmospheric Pressure
    60- 106Kpa
